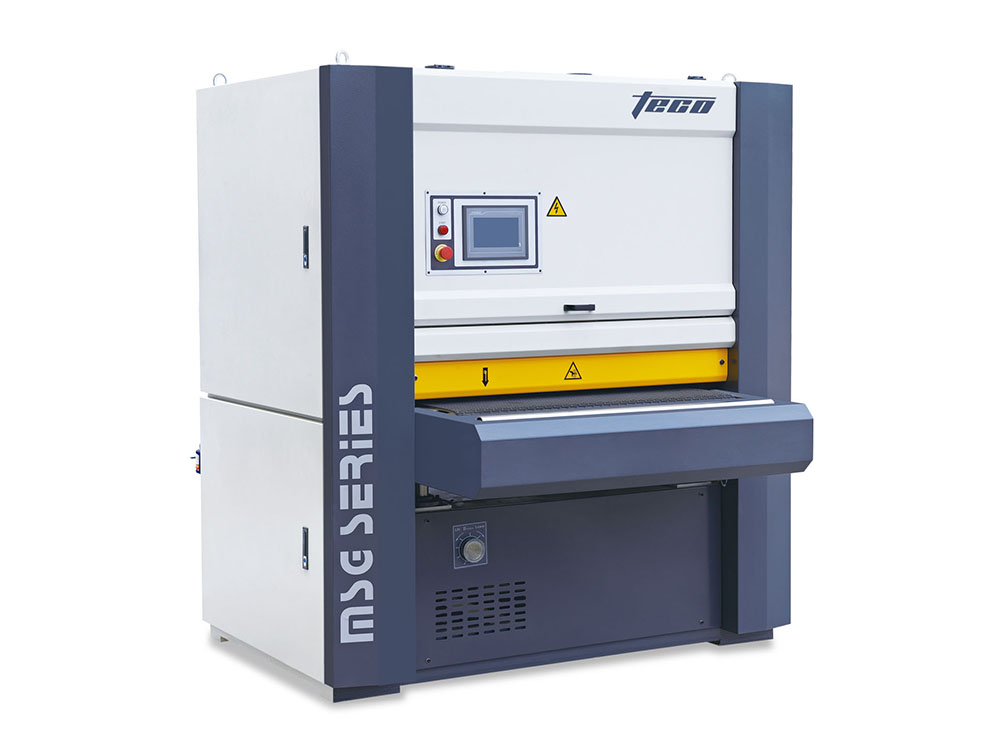

本機型屬于多功能型設(shè)備，兼有底漆砂光機及定厚砂光機的功能
技術(shù)參數(shù)表：
|
型號 |
TYPE |
MSG630R-R(A) |
MSG1000R-R(A) |
MSG1300R-R(A) |
|
加工寬度 |
Working Width |
30--630mm |
30--1000mm |
30--1300mm |
|
加工厚度 |
Working Thickness |
2--100mm |
2--100mm |
2--100mm |
|
加工板材長度 |
Working Length |
≥270mm |
≥270mm |
≥310mm |
|
送料速度 |
Feed Speed |
5--25m/min |
5--25m/min |
5--25m/min |
|
砂帶尺寸 |
Size of Abrasive Belt |
1900*650mm |
2000*1020mm |
2200*1320mm |
|
電機總功率 |
Total Motor Power |
17KW |
24KW |
37.55KW |
|
工作氣壓 |
Working Air Perssure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
工作電壓 |
Working Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
吸塵風速 |
Speed Of Suckeed Air |
8200m3/h |
8200m3/h |
8200m3/h |
